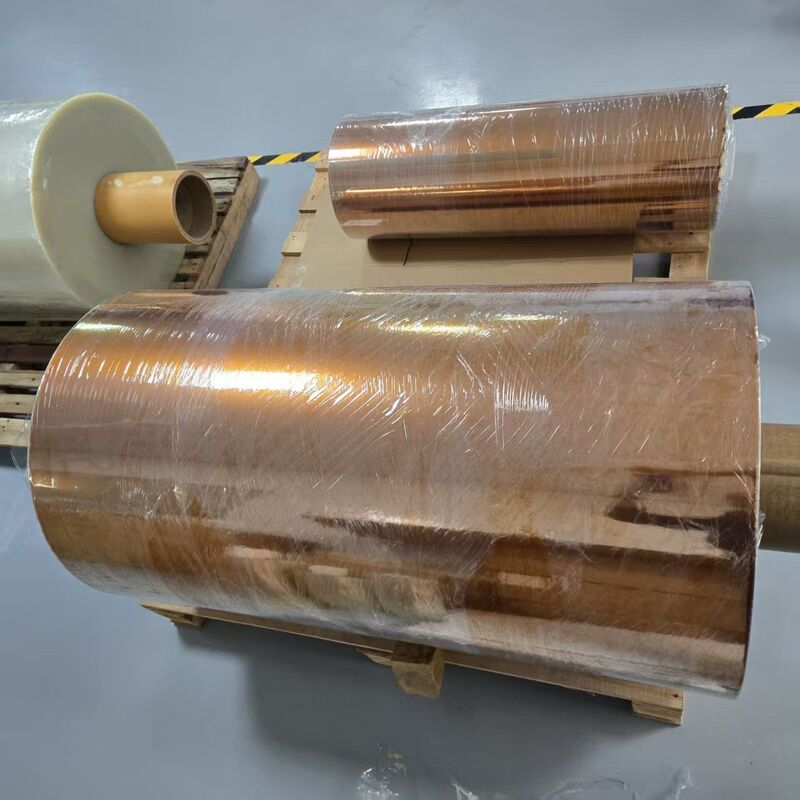

Polyimide FEP Coated Film (PI-FEP / PI-F46, FH Single-Sided, FHF Double-Sided), 0.030–0.075mm Thickness, F Layer 0.005–0.0125mm

Product Introduction

PI-FEP Film (also known as PI-F46 Film, Polyimide FEP Coated Film, FH Film or FHF Film) is a high-performance composite film made by impregnating and coating FR463 emulsion solution onto cast polyimide film, followed by high-temperature sintering.

This material combines the outstanding properties of polyimide film and FEP coating, offering excellent electrical insulation, high temperature resistance, radiation resistance, chemical resistance, and high-temperature self-bonding sealing performance.

The yellow polyimide film coated with FEP provides improved scratch resistance, abrasion resistance, dielectric strength, and bonding strength, making it an ideal material for demanding insulation applications such as submersible pump electromagnetic wire, aircraft electrical systems, motors, generators, and high-voltage equipment.

Product Features

• High scratch and abrasion resistance

• Excellent high-temperature electrical insulation

• Good cut-through resistance

• High dielectric strength

• Strong bonding strength

• Good corona resistance

• Excellent electrical and mechanical properties

• Heat resistance and radiation resistance

• Chemical stability and flame resistance

• Strong resistance to oil and water

• High-temperature self-bonding sealing performance

Typical Applications

• Insulation for wire and cable used in submersible pumps and aircraft electrical systems

• Insulation for motor windings, generator windings, and rotating electrical machines

• Insulation layer for flat winding wires of deep-well submersible motors

• Copper winding wire and electromagnetic wire insulation

• Lap insulation for electrical equipment and motors

• Wind power generators, inverter motors, traction motors, and rotating motors

• High-voltage transformers

• Magnet wire wrapping

• Ultra-high voltage cable insulation

Product Structure

• FH Film: Single-sided FEP coated

• FHF Film: Double-sided FEP coated

Specifications

Packaging

• Film Type:

  • FH Film: Single-sided coated

  • FHF Film: Double-sided coated

• Thickness: 0.030–0.075 mm

• F Layer Thickness: 0.005–0.0125 mm

• Total Thickness Tolerance: ≤10%

• Width: 10–1040 mm

• Width can also be customized according to buyer’s requirements

• Inner core diameter: 40 mm / 50 mm / 76 mm

• Standard export carton packaging

• Plastic bag + carton packaging

• Customized packaging is acceptable

• ---

  Shelf Life

• 1 year from the date of delivery

Why Choose Our PI-FEP Film?

Our PI-FEP composite film is designed for applications requiring a combination of:

High temperature stability

Strong electrical insulation

It is especially suitable for high-demand electrical insulation and winding applications in harsh operating environments.

• Reliable bonding performance

• Mechanical durability

• Resistance to oil, water, radiation, and chemicals

Inquiry CTA

Looking for PI-FEP Film / PI-F46 Film / FEP coated polyimide film for wire insulation, motor winding, or high-voltage electrical applications?
Send us your required thickness, width, structure (FH/FHF), and application, and we will recommend the suitable solution.
