ETFE Film - High Transparency UV & Weather Resistant Fluoropolymer Membrane with 12.5–500 μm Thickness

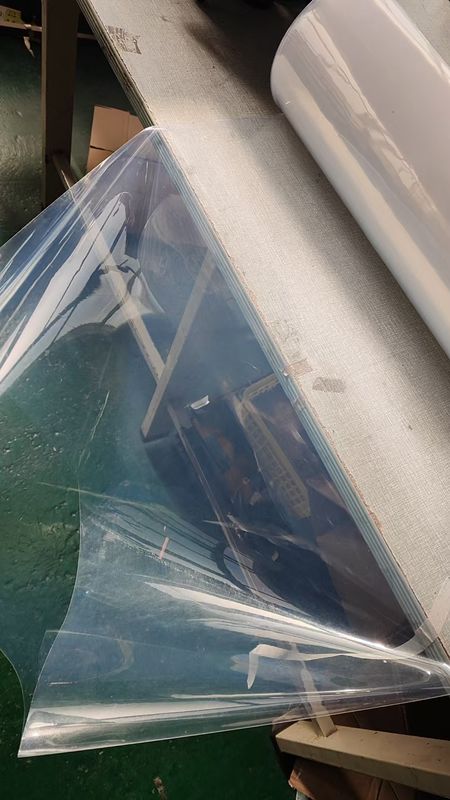

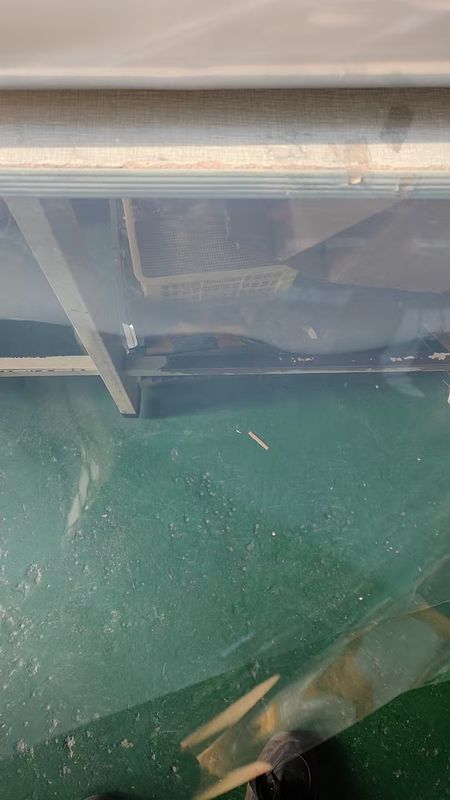

ETFE film is produced by melt extrusion of ETFE resin, featuring a smooth surface and excellent overall performance. The film supports heat sealing, welding, metallization, lamination, and thermoforming processes.

All films are manufactured in cleanroom facilities, available in thicknesses from 12.5 μm to 500 μm, and widths up to 1600 mm. Surface treatment (single or double-sided corona, chemical, or matte treatment) is available to enhance adhesion with other materials.

• Outstanding resistance to most chemicals; inert to acids, bases, and solvents
• Only molten alkali metals, fluorine, and certain halogen compounds under specific conditions may cause corrosion
• Excellent barrier to liquids, gases, water vapor, and organic vapors

• Continuous service temperature: -240 °C to +150°C
• Melting point: > 260°C

• Flammability rating: UL 94 V-0
• Oxygen Index: 30%

• High dielectric strength: > 160 kV/mm (0.025 mm film)
• Low dielectric constant and dissipation factor
• Excellent electrical reliability compared to other films

• Excellent non-stick and low-friction characteristics
• High impact and tear resistance
• Good mechanical performance even at cryogenic temperatures

• Stable under long-term outdoor exposure
• High transmittance of UV and visible light, except far infrared

ETFE film is supplied in rolls on standard paper or plastic cores, sealed in protective bags, and packed in custom cartons.

• Outstanding weatherability and light transmittance (>95%)
• Non-stick surface reduces cleaning and maintenance costs
• Proprietary surface treatment ensures excellent adhesion to EVA/POE encapsulants
• Weight reduction up to 70% compared to glass (25 μm ETFE: 45 g/m², only 1/100 weight of glass)
• Service life >20 years outdoor
• Continuous temperature range: -200 °C to +150°C
• Dielectric strength: 160 kV/mm
• Flame rating: UL 94 V-0
• Optional matte surface to reduce reflection and improve power generation efficiency

• Excellent chemical resistance and high purity
• Free from additives, ensuring biocompatibility and low extractables
• Surface-treated ETFE film bonds strongly to rubber stoppers
• Extends drug shelf life by preventing leaching of additives
• Excellent tensile and barrier properties

• Ideal for roofing and façade applications
• High weather resistance with >25 years outdoor service life
• Excellent transparency (light transmission up to 93%)
• Fire rating: B1 (GB8624-2012 certified)
• Lightweight with customizable colors, patterns, and shading effects
• Self-cleaning surface with high dirt resistance

• Excellent non-stick and low-friction properties
• Continuous service temperature: up to 150 °C
• Chemical resistance and flexibility for precise lamination
• Available with single or double-sided matte treatment
• Reduces mold contamination and improves product yield
