ETFE Powder Coating
ETFE powder coating is a melt-processable fluoropolymer coating material designed to provide metal components with chemical resistance, mechanical strength, impact resistance and durable surface protection.
After the powder is applied to a properly prepared substrate and melted under controlled heating conditions, it forms a continuous fluoropolymer coating layer. ETFE combines strong chemical resistance with better toughness and mechanical strength than many conventional fluoropolymer coating materials. It can be used for coating and lining through processes such as electrostatic powder coating and rotational lining.

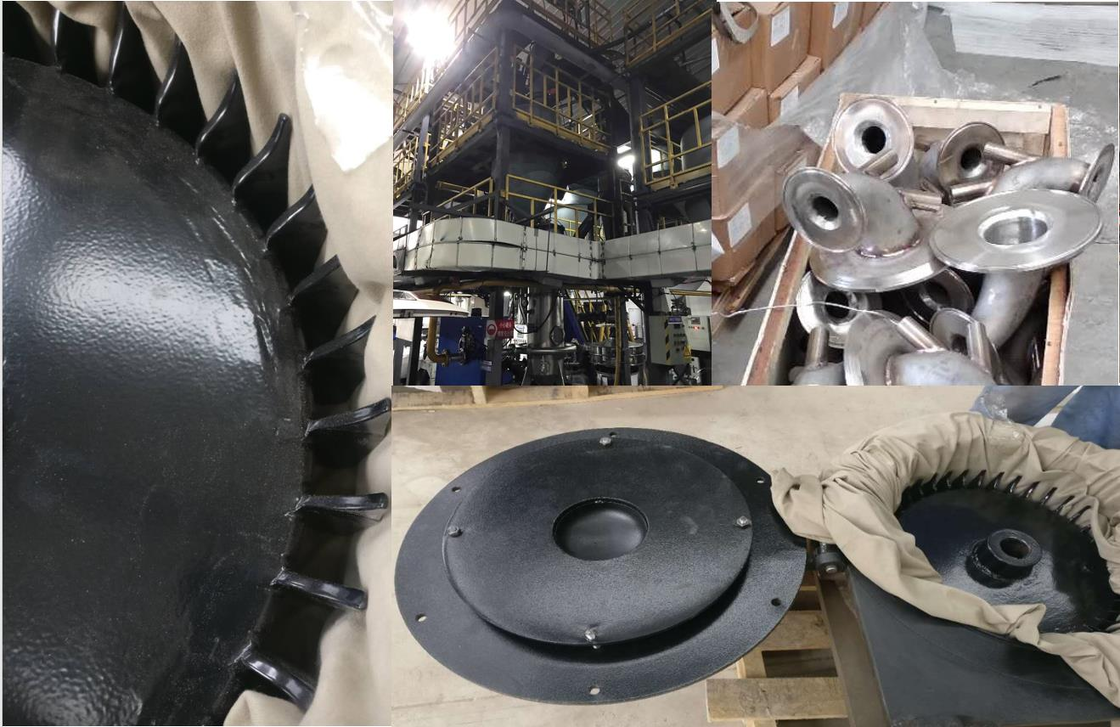

ETFE coating powder is suitable for metal tanks, pipes, valves, fittings, pumps and industrial equipment exposed to corrosive chemicals, outdoor environments, mechanical impact or repeated handling.
Natural and colored grades can be supplied according to project requirements. The coating formulation, primer system, film thickness and processing conditions should be selected according to the substrate, equipment structure and operating environment.
Key Features
- Excellent resistance to many acids, alkalis and organic solvents
- High mechanical strength
- Good impact and abrasion resistance
- Strong and durable coating layer
- Good weatherability and ultraviolet resistance
- Suitable for outdoor and industrial environments
- Good electrical-insulation properties
- Low-friction and low-surface-energy characteristics
- Thick-film coating capability
- Natural and colored grades available
- Suitable for electrostatic coating and rotational lining
- Custom particle size and coating system available
ETFE is recognized for its toughness, chemical resistance, electrical properties, weatherability and resistance to ultraviolet exposure.
Typical Technical Specifications
The following values are general product-page references. Final specifications must be confirmed according to the selected ETFE grade and approved technical data sheet.
| Parameter |
Reference Specification |
| Polymer Type |
ETFE |
| Full Name |
Ethylene Tetrafluoroethylene Copolymer |
| Product Form |
Fine Powder |
| Standard Color |
Natural |
| Optional Colors |
Custom Colors Available |
| Particle Size |
Approximately 20–100 μm, subject to grade |
| Melting Range |
Approximately 260–270°C, subject to grade |
| Recommended Film Thickness |
Approximately 80–300 μm per coating system |
| Processing Temperature |
Subject to Resin Grade and Equipment |
| Surface Finish |
Smooth / Semi-Gloss / Textured |
| Coating Method |
Electrostatic Spray / Rotational Lining |
| Substrate |
Carbon Steel / Stainless Steel / Other Prepared Metals |
| Primer |
Subject to Substrate and Coating System |
| Custom Formulation |
Available Subject to Project Evaluation |
Important technical note
The values 20–100 μm particle size, 260–270°C melting range, 80–300 μm film thickness and 300–340°C processing temperature should not be presented as guaranteed universal specifications.
Different ETFE grades may have different melting points, flow behavior, adhesion systems and recommended processing conditions. Lower-melting ETFE grades are also available, so the final processing window must follow the approved material data and coating trial.
Coating Structure
A complete ETFE coating system may include:
- Metal substrate
- Surface pretreatment
- Compatible primer
- ETFE powder coating layer
- Optional additional coating layers
- Final melting and inspection
The substrate must be clean and properly prepared before coating. Surface contamination, insufficient blasting, unsuitable primer, excessive film thickness or incorrect heating may cause:
- Poor adhesion
- Pinholes
- Bubbles
- Delamination
- Uneven film thickness
- Incomplete melting
- Surface cracking
The actual coating process should be validated using the selected substrate, primer, powder grade and target film thickness.
Coating Methods
Electrostatic Powder Coating
ETFE powder is electrically charged and sprayed onto a prepared metal surface. The coated component is then heated so that the powder melts and forms a continuous film.
Suitable for:
- Metal components
- Pipe fittings
- Valve parts
- Pump parts
- Frames and equipment parts
- Components with accessible surfaces
Rotational Lining
Powder is placed inside a hollow metal component and distributed while the component is heated and rotated.
Suitable for:
- Tanks
- Vessels
- Pipes
- Containers
- Hollow chemical-processing components
ETFE powder is used commercially for electrostatic coating, rotational lining and the coating of pipes and other metal parts.
Typical Applications
Chemical Processing Equipment
ETFE coatings can protect equipment exposed to acids, alkalis, solvents and corrosive process chemicals.
Typical components include:
- Chemical tanks
- Reactors
- Process vessels
- Pipe sections
- Fittings
- Pump housings
- Valve bodies
- Chemical containers
Outdoor Metal Components
ETFE provides good resistance to ultraviolet radiation and weather exposure, making it suitable for selected outdoor metal components and structural equipment.
Mechanical and Industrial Equipment
The toughness and mechanical strength of ETFE make it suitable for parts exposed to handling, impact and mechanical wear.
Electrical and Electronic Components
ETFE offers useful electrical-insulation properties and may be used for selected coated components requiring both insulation and mechanical durability.
Automotive and Transportation Equipment
ETFE coating powder can be considered for selected chemical-contact, electrical and corrosion-protection components.
ETFE Coating Compared with PTFE and PFA Coatings
| Property |
ETFE Coating |
PTFE Coating |
PFA Coating |
| Mechanical Strength |
High |
Lower |
Medium |
| Toughness |
High |
Lower |
Good |
| Impact Resistance |
High |
Moderate |
Good |
| Chemical Resistance |
Excellent |
Extremely Broad |
Extremely Broad |
| Non-Stick Performance |
Good |
Excellent |
Excellent |
| Thick-Film Capability |
Good |
Depends on System |
Excellent |
| Weatherability |
Excellent |
Good |
Good |
| Typical Selection |
Tough protective coating |
Low friction and release |
Thick corrosion-resistant lining |
ETFE is commonly selected when chemical resistance must be combined with stronger mechanical and impact performance.
Available Product Options
- Natural ETFE powder
- Colored ETFE powder
- Fine-particle coating powder
- Electrostatic spray grade
- Rotational-lining grade
- Primer-compatible coating system
- Custom particle-size distribution
- Custom coating thickness
- Project-based color matching
- Small sample quantity for coating trials
- Production-scale supply
Quality Control
Inspection can include:
- Powder appearance
- Particle-size distribution
- Melt-flow performance
- Color consistency
- Batch identification
- Coating thickness
- Adhesion testing
- Spark testing
- Holiday or pinhole testing
- Surface inspection
- Impact testing
- Chemical-resistance testing
- Packaging inspection
The required test method and acceptance criteria should be agreed upon before production.
Packaging and Storage
ETFE powder coating should be:
- Kept in sealed packaging
- Stored in a clean and dry environment
- Protected from moisture and contamination
- Kept away from excessive heat
- Used according to the recommended storage period
- Mixed and handled with clean coating equipment
Standard packaging depends on the product grade and order quantity.
