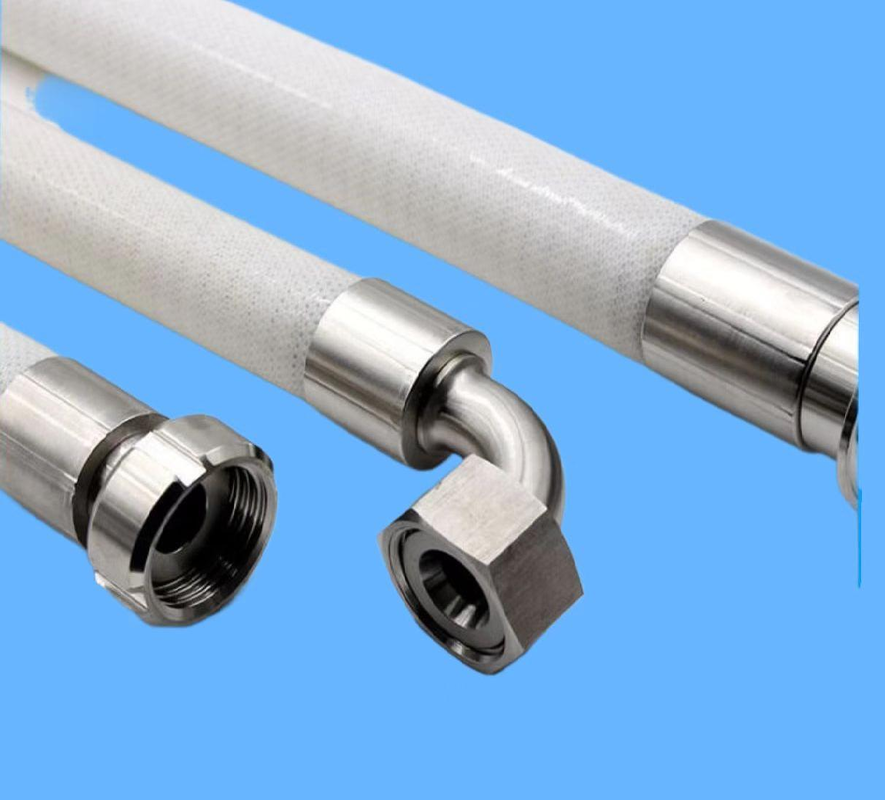

Food Grade Platinum Cured Double Layer 316 Stainless Steel Wire Reinforced Silicone Hose for High Pressure Vacuum Food Beverage Pharmaceutical Transfer

660 Double-Layer Silicone Steel Wire Reinforced Hose is a high-performance food-grade platinum-cured silicone hose designed for high-pressure, vacuum suction, and hygienic fluid transfer applications.

The hose is suitable for transporting high- and low-temperature food liquids, cosmetics, wine, beverages, drinking water, pharmaceutical liquids, and bioengineering fluids. It can also be used in special high-temperature and high-pressure working conditions.

The inner tube is made of food-grade platinum-cured silicone, with optional FVMQ, FPM/FKM, or FEP inner liner according to different working media requirements. The reinforcement layer combines four layers of reinforced polyester mesh fabric with double-layer 316 stainless steel wire, providing excellent pressure resistance, vacuum resistance, anti-kinking performance, and dimensional stability. The outer layer can be made of food-grade platinum-cured silicone, FVMQ, or FPM/FKM.

The smooth inner wall makes the hose easy to clean and helps reduce material residue. It can be used for CIP, SIP, radiation sterilization, and autoclave sterilization processes. Platinum-cured silicone is colorless and odorless, and contains no plasticizers or harmful additives, making it suitable for high-hygiene food, beverage, pharmaceutical, and cosmetic applications.

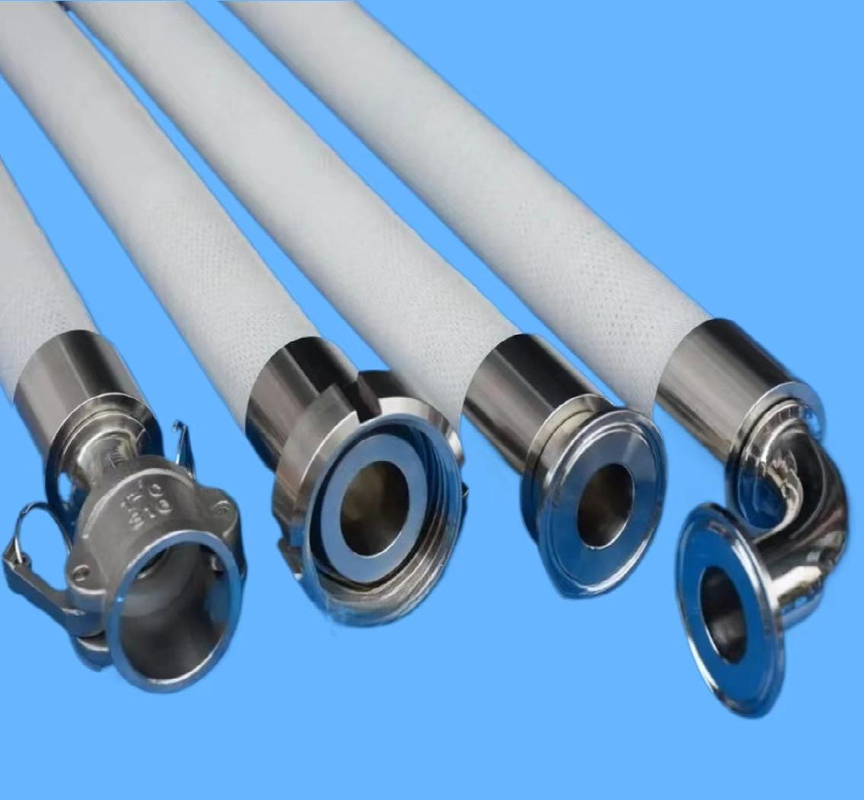

The hose can be equipped with TC sanitary fittings, SMS fittings, DIN fittings, flange fittings, and threaded fittings according to customer requirements.

Key Features:

• Food-grade platinum-cured silicone material
• Optional FVMQ, FPM/FKM, or FEP inner liner
• Four-layer reinforced polyester mesh fabric
• Double-layer 316 stainless steel wire reinforcement
• Excellent high-pressure and vacuum resistance
• Smooth inner wall, easy to clean
• Good flexibility and anti-kinking performance
• Suitable for high-temperature and high-pressure applications
• Can be used for CIP, SIP, radiation sterilization, and autoclave sterilization
• Available with TC, DIN, SMS, flange, and threaded fittings
• Standard length: 6 meters, customizable up to 10 meters
• Temperature range: -40°C to 220°C
• FDA 21 CFR 177.2600 and USP Class VI compliance available upon request
