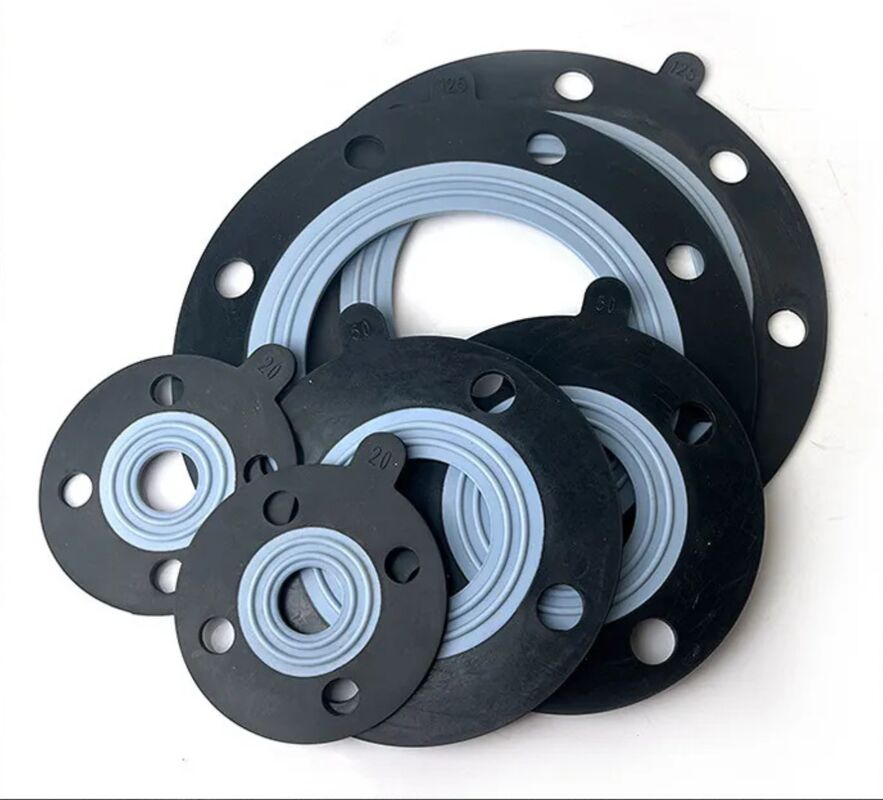

Universal Flange Gaskets with Tabs - EPDM, FKM (Viton), PTFE Bonded - Fits ANSI 150 / DIN / JIS Standards - Full Face Seal

 Universal Flange Gaskets - EPDM, FKM (Viton) & PTFE Bonded - DIN / ANSI / JIS Standards

Short Description: High-performance industrial flange gaskets featuring easy-alignment tabs. Available in EPDM, FKM (Viton), and PTFE/Rubber composite materials. Universal compatibility with DIN, ANSI, and JIS flange standards. Sizes range from 1/2" (DN15) to 24" (DN600).

Key Features (Bulleted List):

• Multi-Standard Compatibility: Precision-engineered to fit DIN (German), ANSI (American), and JIS (Japanese) flange systems seamlessly.

• Premium Material Options:

  • EPDM (Black): Excellent resistance to weathering, ozone, water, and steam. Ideal for general utility and water treatment.

  • FKM / Viton (Brown): Superior chemical resistance and high-temperature stability. Perfect for oils, fuels, and aggressive chemicals.

  • PTFE Bonded (Composite): Combines the elasticity of rubber with the chemical inertness of PTFE (Teflon). Ideal for high-purity and corrosive environments.

• Smart Design: Features integrated "tabs" (handles) for easier installation and alignment between flange faces.

• Full Face Sealing: Ensures a leak-proof seal with pre-cut bolt holes matched to specific pressure standards

• Detailed Specifications:

  Feature	Details
  Product Type	Full Face Flange Gasket with Tabs
  Material Grades	EPDM (Standard), FKM/Viton (High-Temp/Oil), PTFE+Rubber (Chemical/Composite)
  Standard Support	DIN (PN10/16), ANSI (Class 150), JIS (10K)
  Size Range	DN15 (1/2") up to DN600 (24")
  Temperature Range	EPDM (-40°C to 120°C), FKM (-20°C to 200°C)
  Thickness (T)	Standard 3mm (See dimension table for details)

Application Areas:

• Water & Wastewater Treatment

• Chemical Processing & Petrochemicals

• Pipeline Construction

• HVAC Systems

• Food & Beverage Industry (PTFE variants)

Dimension Table Overview (Summary): (Note: Please refer to the specific datasheet for exact bolt hole spacing 'e' and diameter 'd2')

• Small Sizes: 1/2" (15mm) - 2" (50mm)

• Medium Sizes: 2-1/2" (65mm) - 8" (200mm)

• Large Sizes: 10" (250mm) - 24" (600mm)



  Nom Size m/m (inch)	D1 (mm)	D2 (mm)	D3 (mm)	d1 (mm)	d2 (mm)	n (pcs)	e (mm)	T (mm)	Materials
  15 (½”)	18	65	95	26	41	4	14	3	EPDM, PTFE, VITON
  20 (¾”)	23	75	104	32	47	4	14	3	EPDM, PTFE, VITON
  25 (1”)	28	85	115	38	53	4	14	3	EPDM, PTFE, VITON
  32 (1¼”)	35	100	132	50	65	4	18	3	EPDM, PTFE, VITON
  40 (1½”)	43	110	147	54	69	4	18	3	EPDM, PTFE, VITON
  50 (2”)	54	125	159	68	83	4	18	3	EPDM, PTFE, VITON
  65 (2½”)	69	145	178	86	101	4	18	3	EPDM, PTFE, VITON
  80 (3”)	86	160	191	98	110	8	18	3	EPDM, PTFE, VITON
  100 (4”)	105	175	210	120	138	8	18	3	EPDM, PTFE, VITON
  125 (5”)	128	210	245	145	166	8	18	3	EPDM, PTFE, VITON
  150 (6”)	155	240	279	168	190	8	23	3	EPDM, PTFE, VITON
  200 (8”)	205	290	335	216	247	8	23	3	EPDM, PTFE, VITON
  250 (10”)	255	355	389	270	306	12	23	3	EPDM, PTFE, VITON
  300 (12”)	305	400	430	324	335	12	23	3	EPDM, PTFE, VITON
  350 (14”)	360	445	500	370	390	16	25	3	EPDM, PTFE, VITON
  400 (16”)	405	510	555	433	453	16	27	3	EPDM, PTFE, VITON
  450 (18”)	455	565	604	481	506	20	28	3	EPDM, PTFE, VITON
  500 (20”)	502	620	657	533	559	20	28	3	EPDM, PTFE, VITON
  600 (24”)	602	725	780	651	676	20	28	3	EPDM, PTFE, VITON




  Notes:

  • Standard:​ All dimensions comply with the DIN​ standard.

  • Parameters:​

    • D1: Gasket Inner Diameter

    • D2: Gasket Outer Diameter

    • D3: Bolt Circle Diameter (PCD)

    • d1: Bolt Hole Diameter

    • d2: Flange Sealing Face Inner Diameter

    • n: Number of Bolt Holes

    • e: Bolt Circle Diameter (same as D3, as shown in the drawing)

    • T: Gasket Thickness (constant 3mm)

  • Material Options:​ EPDM​ (Ethylene Propylene Diene Monomer), PTFE​ (Polytetrafluoroethylene), VITON​ (Fluoroelastomer) are available for all sizes.
