Description
Engineered for extreme environments, this transparent PFA tubing with flange assembly offers outstanding chemical resistance, 260°C high-temperature performance, and excellent visibility. Ideal for fluid handling, chemical processing, automotive, pharmaceutical, optical fiber, and industrial machinery applications.
Overview

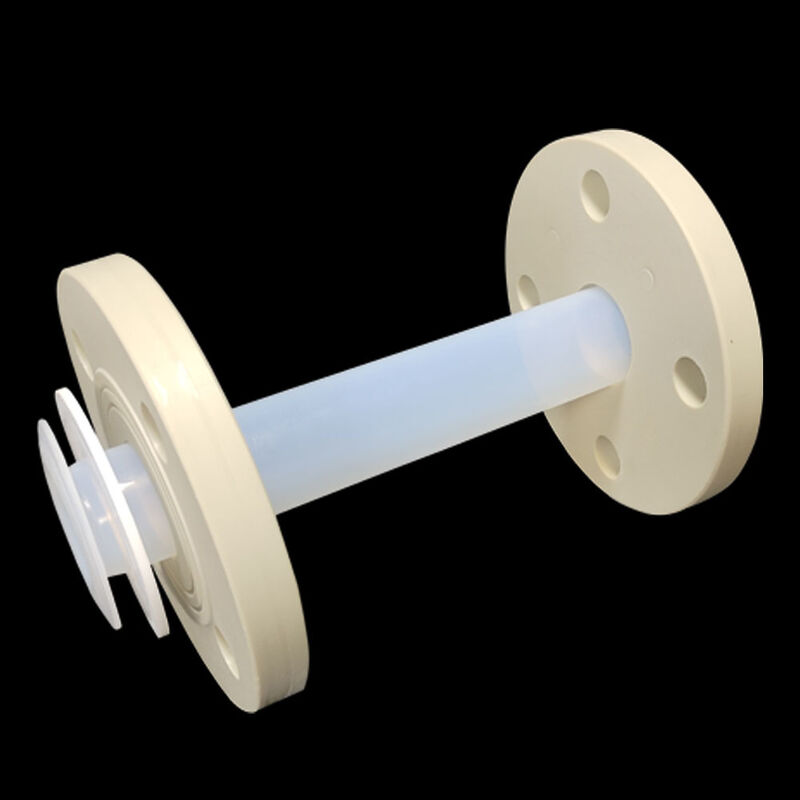

This transparent PFA tubing with flange assembly is designed for harsh industrial applications requiring high purity, corrosion resistance, and extreme temperature stability. With operating temperatures from -70°C to +260°C, excellent UV transmission, and superior non-stick properties, PFA tubing is widely used in chemical plants, semiconductor wet processes, laboratory systems, medical fluid lines, and precision machinery.
We offer complete custom flange assemblies, ensuring fast installation and leak-proof sealing for demanding fluid transfer systems.
Key Features & Advantages
1. Exceptional Corrosion Resistance
PFA is almost completely inert and insoluble in all known chemical solvents.
It withstands long-term exposure to:
No swelling, no degradation — ideal for aggressive chemical environments.
2. Wide Temperature Range (-70°C to +260°C)
Suitable for both cryogenic and high-temperature continuous operation.
Material maintains stability without cracking, deforming, or aging.
3. Excellent Weather Resistance
When exposed to outdoor or industrial atmospheres, PFA maintains:
-
Surface smoothness
-
Mechanical strength
-
Chemical stability
-
Light transmission
Long service life with minimal maintenance.
4. Low Friction & Non-Stick Surface
PFA has one of the lowest coefficients of friction among all plastics.
✓ Self-lubricating
✓ Non-stick, easy to clean
✓ Ideal for transporting viscous or sticky fluids
✓ Reduced risk of blockage in pipelines
5. Superior Dielectric and Insulation Properties
Excellent electrical insulation performance makes it suitable for:
-
High-voltage components
-
Sensor protection
-
Electronic equipment
-
Fiber optics
6. High Transparency / UV Transmission
The tubing offers glass-like clarity and high UV transmittance:
✓ Allows visual monitoring of fluid flow
✓ Suitable for UV sterilization systems
✓ Perfect for laboratory and high-purity processes
7. Customizable Flange Assemblies
We can provide:
-
Standard or custom PFA flare + flange
-
Full assembly for quick installation
-
Leak-proof, corrosion-resistant fluid connection solutions
Customized dimensions, lengths, and joint designs are available upon request.
Specifications
| Item |
Specification |
| Material |
100% PFA (Perfluoroalkoxy) |
| Inner Diameter Range |
0.6 ~ 50 mm |
| Outer Diameter Range |
1 ~ 54 mm |
| Working Temperature |
-70°C ~ +260°C |
| Flame Resistance |
Self-extinguishing |
| Transparency |
High clarity, high UV transmittance |
| Properties |
Non-stick, low friction, chemical inertness, electrical insulation |
| Application Industries |
Fluid handling, chemicals, automotive, pharmaceutical, fiber optics, machinery |
Applications
-
Chemical fluid transfer & corrosion-resistant pipelines
-
High-purity semiconductor fluid systems
-
Automotive & mechanical component protection
-
Pharmaceutical manufacturing & laboratory analysis
-
Optical fiber protection and UV applications
-
Food, biotech, and medical equipment tubing
-
Viscous or sticky liquid transportation
