Custom Chemical Transfer Line PTFE Micro Tubing For Lab Medical Industrial

PTFE Micro Tubing – Smooth Bore, Transparent White ISO13485 Certified Fluoropolymer PTFE Tube – Non-Toxic, Flexible, Chemical

Medical Grade PTFE Tube – Precision Fluoropolymer Tubing for Demanding Applications

Engineered for Biocompatibility, Chemical Resistance, and Ultra-Smooth Performance



Product Overview

Shenzhen Teflon New Material Technology Co., Ltd. offers high-performance PTFE tubes designed specifically for medical, analytical, and industrial applications where extreme durability and purity are required.

Made from virgin-grade polytetrafluoroethylene (PTFE), our tubes are known for their exceptional chemical resistance, ultra-low friction, and biological inertness, making them ideal for catheters, infusion systems, chemical transfer lines, and more.

We offer full OEM/ODM customization, tight tolerance control, and ISO13485-compliant production in our cleanroom-equipped facility.




Key Features & Benefits

• Medical Grade Quality: Biocompatible, non-toxic, tested for cytotoxicity and hemocompatibility

• Ultra-Low Friction: Surface coefficient as low as 0.1, ideal for guide wire & catheter delivery

• Chemical Inertness: Resists virtually all acids, bases, and solvents

• High Thermal Resistance: Operates from –200°C to +260°C

• Non-Adhesive Surface: Reduces protein/biofilm buildup, lowers infection risk

• Customizable Sizes: OD 0.3mm to 5mm, wall thickness from 0.05mm to 1.0mm

• Cleanroom Manufacturing: ISO13485 & ISO9001 certified, 100% QC tested




  Specifications

  Parameter	Value
  Material	Virgin PTFE (Polytetrafluoroethylene)
  Outer Diameter Range	0.3 mm – 5.0 mm
  Wall Thickness	0.05 mm – 1.0 mm
  Operating Temp	–200°C to +260°C
  Tolerance	±0.02 mm (customizable)
  Length	10 cm – 300 cm (custom lengths)
  Certifications	ISO13485, ISO9001, FDA-compliant grade available
  Packaging	Cleanroom-sealed PE bags or reels



  Common Applications



  Interventional Cardiology: Guide catheters, drug delivery systems

  Neurovascular: Microcatheters for aneurysm coiling

  Oncology: Chemotherapy infusion tubing

  Urology: Ureteral stents, nephrostomy drainage catheters

  Insulin Delivery: Low-friction tubing for wearable pumps

  Laboratory & Chemical Use: Corrosive fluid transfer lines



  Why Choose Us?

  ✅ 10+ Years of Experience
  Manufacturing fluoropolymer products for the medical, electronics, and chemical industries.

  ✅ Factory Direct
  Located in Shenzhen, China. Over 50,000 meters monthly output, rapid production & delivery.

  ✅ Global Export Capability
  Supplying clients in over 30 countries across North America, Europe, Asia, and South America.

  ✅ Full Customization
  Support for OEM, ODM, color coding, striping, connectors, sterilization-ready tubing.

  ✅ Responsive Support
  Fast RFQ response, engineering advice, after-sales technical support available.

  ---

   Sample & Ordering



  MOQ: 100 meters (flexible for new buyers)

  Samples: Free samples available (shipping cost only)

  Lead Time: 7–15 working days depending on quantity

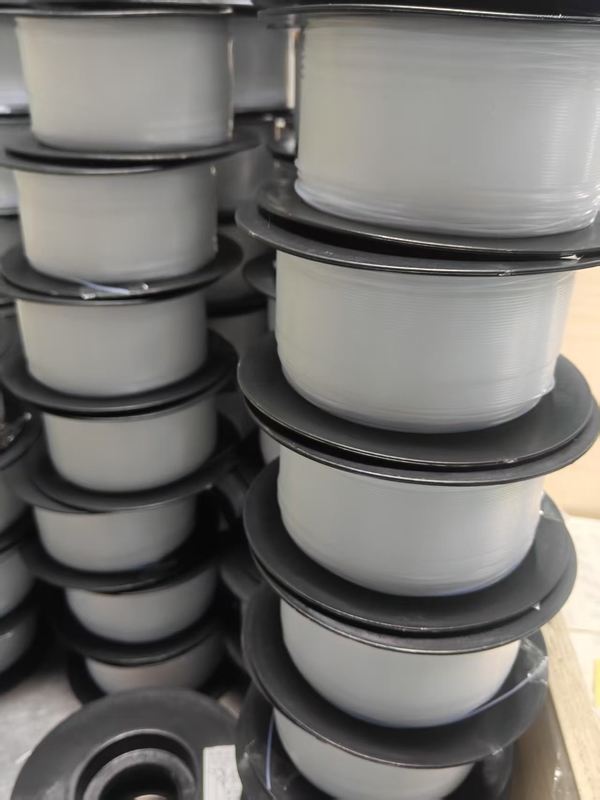

  Packaging: Medical-grade PE bag, coil, spool, or custom box

  Shipping: DHL, FedEx, UPS, air freight, or sea freight options available
